The Kreon Zephyr III is a high-end blue-laser 3D scanner designed for integration with CMMs (coordinate measuring machines), measuring arms, robots, or machine tools Kreon 3D+1. It comes in three configurations optimized for different needs:

• Zephyr III 50: Offers the highest accuracy and resolution, ideal for capturing small geometries and fine details like engravings or grooves.

• Zephyr III 150: Provides a balanced trade-off between precision and speed—well-suited for general applications like dimensional control or reverse engineering.

• Zephyr III 300: Equipped with a 300 mm laser line for rapid scanning of larger parts—perfect for full-surface inspection tasks like deformation or assembly checks

• Replacing Traditional CMMs

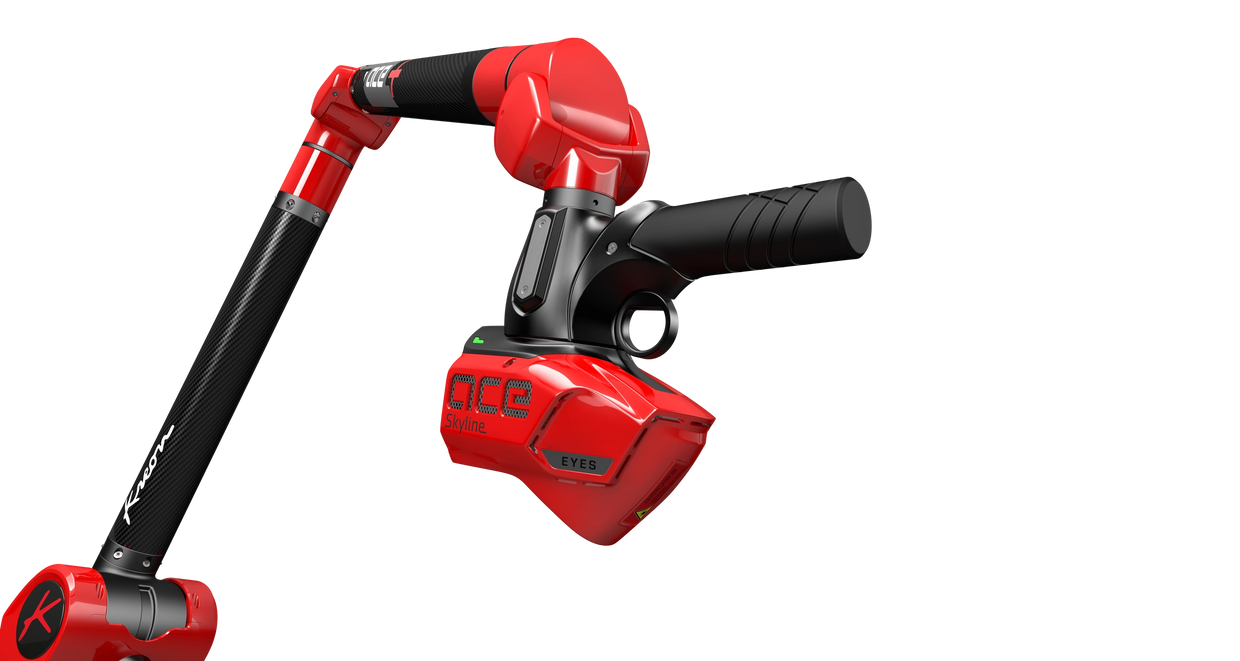

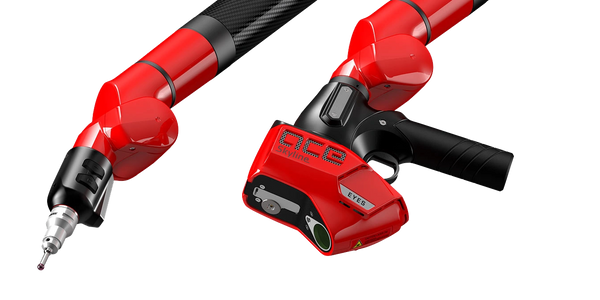

  Aggressive Tool & Die shifted from conventional CMMs—particularly for scanning unique, complex parts—to the Kreon ACE arm equipped with a Zephyr II laser scanner. It proved far more efficient: no lengthy programming and greater flexibility in part access and positioning.Kreon 3D

• Capturing Deformation and “Spring-back” Effects
  The deep-draw process often introduces spring-back once relief from tooling occurs. The ACE arm’s full-surface scanning capability lets operators quickly visualize and assess these deformations using color-mapped 3D data.Kreon 3D

• Versatile Inspection Tools
  Beyond deformation, the system enables quick measurement of angles, diameters, and GD&T parameters. These checks are streamlined in PolyWorks software, where CAD imports retain tolerance specifications for faster inspection workflows.

• Maintaining Up-to-Date Tooling CAD Models
  When parts deviate beyond limits, manual adjustments are made. The ACE arm then captures the corrected geometry, enabling rapid reverse engineering and updates to the tooling CAD files.

• Mobility & Large-Part Access
  The portable 3.5 m arm offers great reach and maneuverability, allowing measurements even in hard-to-access areas—something fixed CMMs can’t accommodate.

• Efficiency Gains
  The combination of speed, ease of use, and mobility significantly accelerates tooling development cycles—critical in their tight-delivery-time environment.


Aggressive Tool & Die relies on the Kreon ACE portable arm CMM (with Zephyr II) as a faster, more versatile alternative to fixed CMMs. It allows comprehensive inspection of deep-draw tooling—capturing deformations, measuring key features, and updating CAD models—while being highly mobile and adaptive to complex geometries.
